Giá : 800.000 VND

Mô tả


Driver điều khiển động cơ bước M542-05 là hàng chính hãng Leadshine được sử dụng để điều khiển động cơ bước 2 phase và 4 phase

Driver chất lượng tốt, độ bền và độ ẩn định cao, là loại thường được sử dụng nhất trong máy cắt laser, máy CNC cỡ nhỏ, vừa.

Thông số kỹ thuật:

  • Điện áp sử dụng 20 - 50 VDC
  • Dòng điện ngõ ra tối đa 5A
  • Các tùy chỉnh vi bước: 1/2 , 1/4 , 1/8 , 1/32, 1/64, 1/128 ...
  • Các tùy chỉnh dòng điện : 1.20A, 1.75A, 2.29A, 2.84A, 3.41A, 3.97A, 4.51A, 5.04A.
  • giảm độ nóng motor bằng công nghệ implementation of 3-state current control.
  • Xung điều khiển: PULSE/DIRECTION & CW/CCW
  • Tích hợp công nghệ tự động cân chỉnh phù hợp với động cơ
  • Tần số xung tối đa: 300 KHz
  • Bảo vệ: ngắn mạch , quá áp, quá dòng, nhiệt độ .....
  • Sử dụng cho động cơ stepmotor 42 và stepmotor 57



Các lĩnh vực ứng dụng chính:
Dùng cho một loạt các thiết bị công cụ tự động hóa vừa và nhỏ, chẳng hạn như: máy khắc, máy đánh dấu, máy cắt, gia công laser, máy công cụ CNC, thiết bị lắp ráp tự động. Người dùng muốn chi phí thấp,  tiếng ồn thấp.

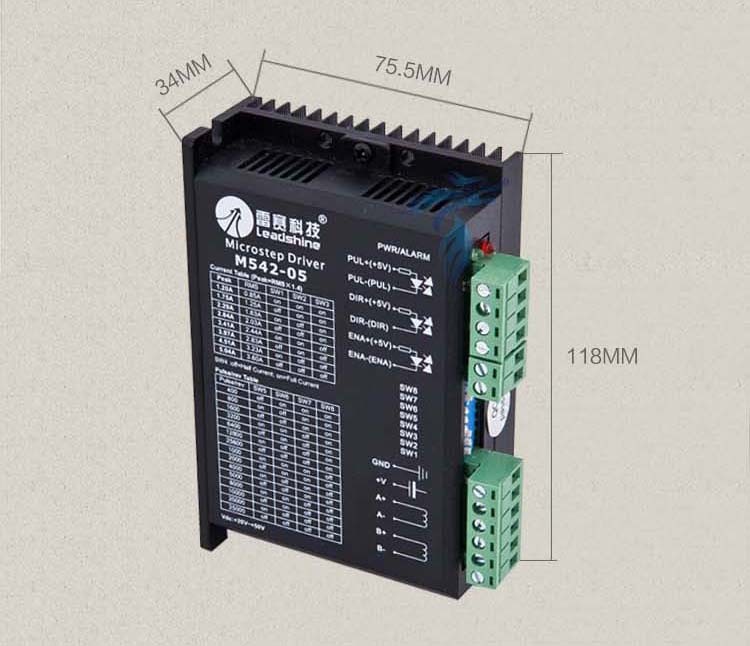

Leadshine 2 phase stepper motor driver M542-05 20V-50VDC

htb1zhdmlxxxxxxdapxxq6xxfxxxw

Gía 800 nghìn/1 cái

Gía trên chưa bao gồm VAT, có xuất hoá đơn VAT  cho khách yêu cầu



 liên hệ 090.66.88884 gặp SƠN

 Điện thoại : 0906688884



 email: phutungcnc@gmail.com



 facebook: https://www.facebook.com/phutungcncQ7



dt 0906688884 gặp Sơn

xem máy tại

Địa chỉ: số 6F đường 30, p. Tân Phong ,  quận 7, tp. HCM

hoặc đi đến quán nhậu 404 trên đường NGUYỄN THỊ THẬP quận 7 ( tp. HỒ CHÍ MINH) gọi điện mình ra đón (đường to xe ô tô đi thoải mái)

phutungcnc

 ở xa thì chuyển vào tài khoản vietcombank: 0071005563809  chủ tài khoản PHAN NHỰT SƠN chi nhánh tp HCM (nam Sài Gòn)

 Mình sẽ chuyển phát nhanh qua bưu điện, dịch vụ chuyển phát, nhà xe ... đến tận tay khách hàng

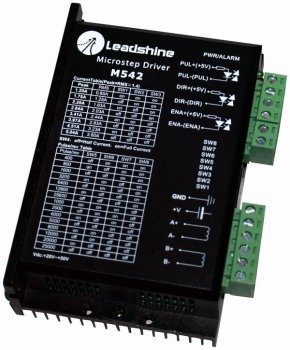

Leadshine M542-05 is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

M542-05 stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 20 - 50 VDC and output current of 1.20 - 5.04 A, M542-05 can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.

A M542-05 stepper drive is easy to setup and configure via DIP switches. There are 15 resolution settings from 400 - 25600, and 8 output current settings from 1.20 - 5.04. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Features

  • Heatsink integrated and connectors included
  • Input: 20-50 VDC
  • Output: 1.0 - 4.2A
  • Microstepping options: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128; or 1/5, 1/10, 1/20, 1/25, 1/40, 1/50, 1/100, 1/125
  • DIP switch current options: 1.20A, 1.75A, 2.29A, 2.84A, 3.41A, 3.97A, 4.51A, 5.04A
  • Low motor heating because of the implementation of 3-state current control technology
  • Support: PULSE/DIRECTION & CW/CCW modes
  • Self-adjustment technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 15 selectable resolutions, up to 25,600 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Short-voltage, over-voltage, over-current and over temperature protection
  • Dimensions: 4.65 X 2.97 X 1.30 inches; 10 oz
  • CE, ROHS certified
